50 pk zelf aangedreven diesel hout log takken chipper crusher machine

Hot sale hydraulic diesel engine chipper wood diesel wood log branch shredder machine

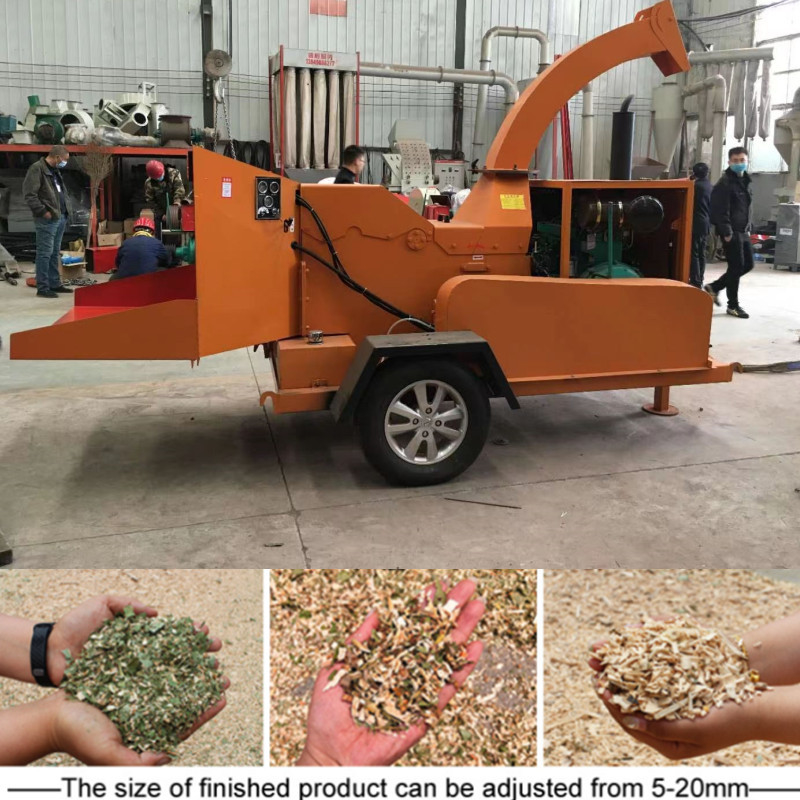

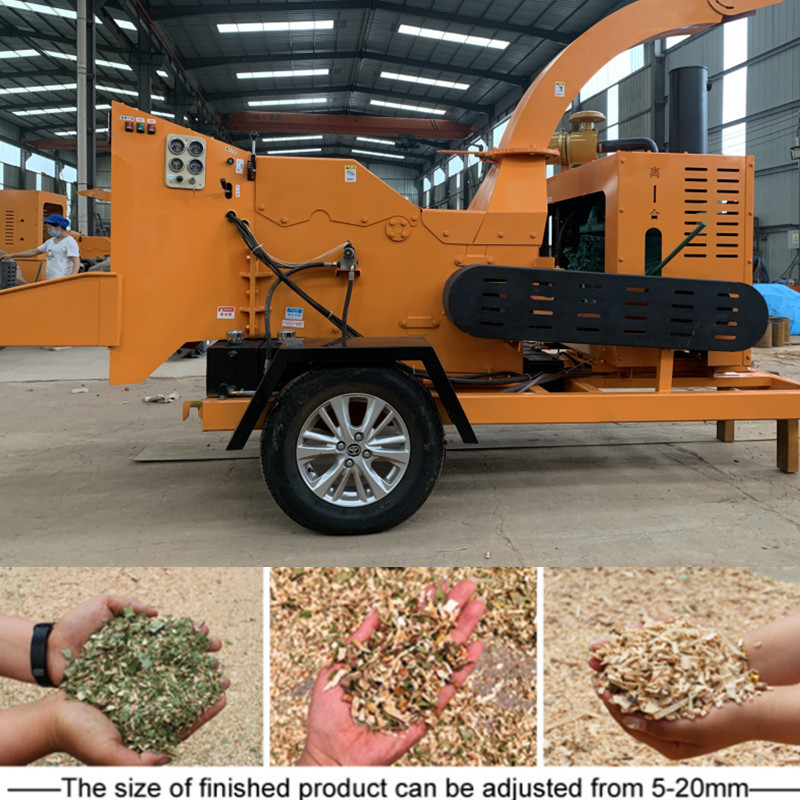

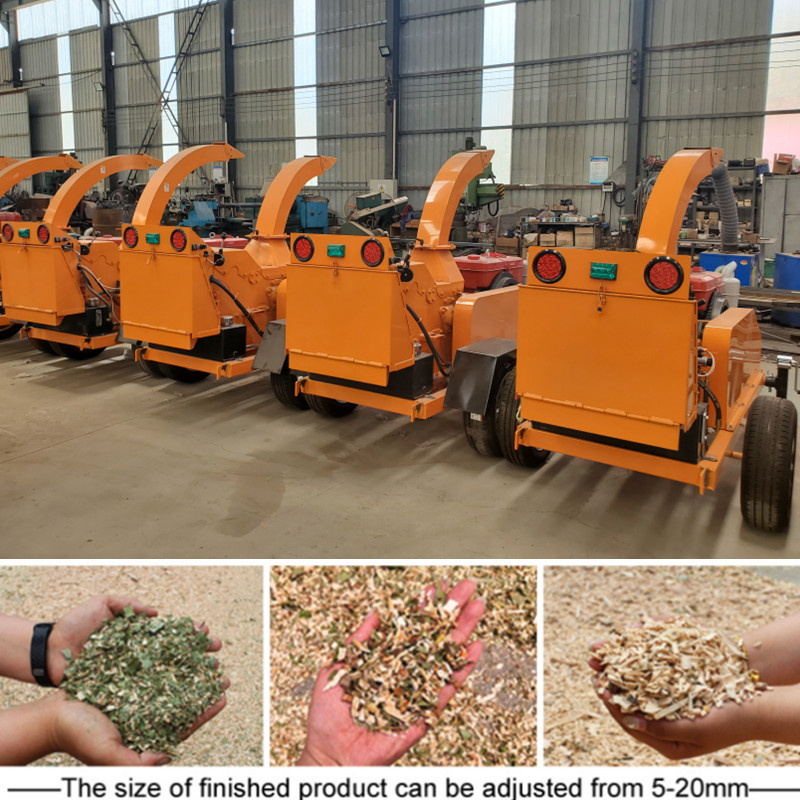

Our this series wood chipper has a large diameter drum rotor, which can directly process wood near to 30cm diameter. The discharge port can be adjusted to face any direction within 360 degrees, and the discharge spray distance can reach 3m. Finished wood chips can be sprayed directly onto trucks. Equipped with a 2-inch tow ball and all-steel car wheels, a 4ton equipment can be easily towed by a small car. The hydraulic feeding system can reduce the occurrence of feeding phenomenon and make feeding safer and more efficient. The 1000 model wood chipper can produce wood chips up to 5 tons per hour.

Name: Movable wood crusher

Model: EW-6130

Capacity: 1-1.5 tons/h

Diesel engine: 55 HP (do from 32HP to 55HP can crush 150mm diameter log

Startup mode: Electric starting

Engine speed: 2900 r/min

Knife roll diameter: 300mm

Feeding pressure roller power: Hydraulic motor

Diameter of feeding pressure roller: 280mm

Number of blades: three moving knives and one stationary knife

Battery specifications: 12v 105ah

Engine power: 800w

Diesel tank volume: 20L

Hydraulic tank volume: 25L

Size of feed inlet: 700*500mm

Feed throat size: 300*250mm

Outlet direction: 360 degree quick adjustment device, discharge nozzle height adjustment

Other configurations: tail lamp, feeding lamp, folding jack, adjustable traction height

Production advantages :

1. 360° any place discharge material. Jet distance up to 2.5M can be directlyUnloading and loading .

2. Aluminum alloy wheels, car tires, 2 inch traction loading more than 5000kgs.

3. Well-known Weifang Diesel Engine in China. Single cylinder 35 hp or 54 hp four-cylinder as option.

4. The hydraulic feeding speed is uniform and the roller diameter is large.

5. The intelligent operation panel (optional) displays the operating conditions of the whole machine (oil volume, water temperature, working hours, etc.) in time to find abnormalities and reduce maintenance.

6. Equipped with an intelligent hydraulic forced feeding system, the 1-10 speed adjustment gear can adjust the speed freely to avoid material jams.
