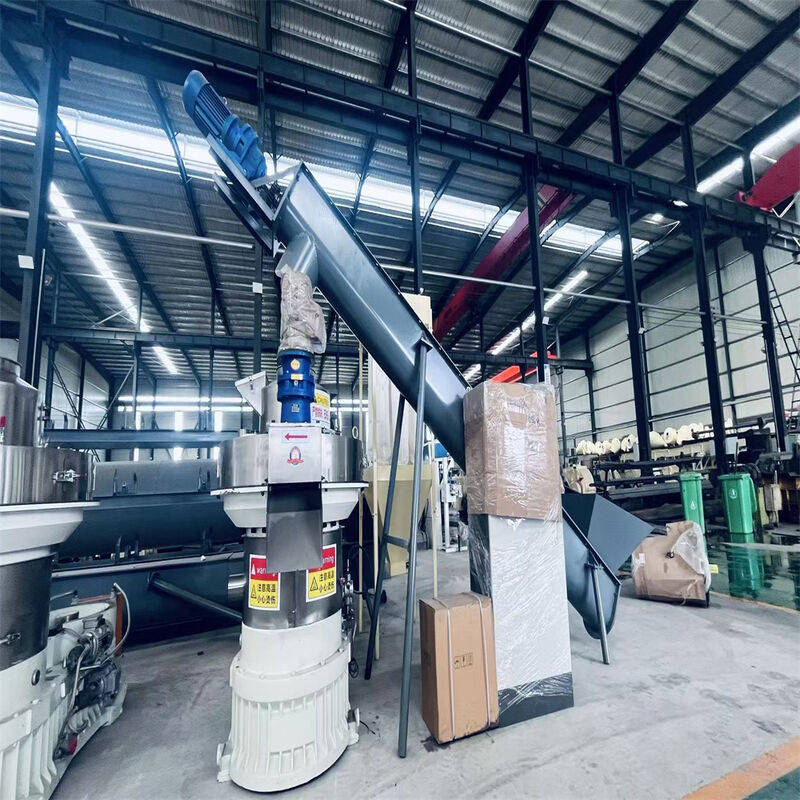

High-Quality Ring Die Wood Pellet Machine with Vertical Feeding Design and Automatic Lubrication System for Biomass Pelletizing

High-Quality Ring Die Wood Pellet Machine

Vertical Feeding Design Biomass Pellet Mill

Automatic Lubrication System Wood Pellet Making Machine

Plaats van herkomst:

China

Merknaam:

Eternalwin

Certificering:

Contacteer ons

Verzoek om een Citaat

Productdetails

Garantie:

1 jaar, 12 maanden, één jaar, 3 jaar, 12 maanden behalve de reserveonderdelen

Certificering:

CE,ISO,CE ISO SGS,ISO & CE,CE ISO SGS-Russia Flat Die Wood Pellet Mill

Spanning:

380 V, 380/400/415 v, aangepast, 220 V/380 V, 380 V (accepteer aangepast volgens uw lokale spanning)

vermogen(w):

90 kW, 7,5 kW, 45 kW, 30 pk, 7,5 kW tot 30 kW

Voorwaarde:

Nieuw

After-sales service verleend:

Ingenieurs beschikbaar voor service aan machines in het buitenland, Installatie, inbedrijfstelling e

Gewicht:

50 kg, 150.3070 kg, 5,8 ton, 480 kg-Rusland platte sterven houtpellets molen

Afmeting (l*b*h):

2600*1300*2300mm, 62*132*132cm, volgens werkelijke houtpelletmachine, 1700*800*1450mm, verschillende

Capaciteit:

60-1500 kg/uur, 1-10TPH, 1,2-1,5 ton, 0,8-1 t/uur, 90-120 kg/uur

Naam:

Houtpellets die machine maken, houtpelletsmolen, Verticale ringmatrijs Houten pellets die machine /

Kleur:

Volgens het verzoek van de klant kan de aangepaste eis van de klant, zoals de klant vereist, zelf wo

Pelletmaat:

verstelbaar, 6/8/10/12 mm, 4 mm ~ 10 mm, 6-12 mm, 6-12 mm

Type:

houtpellets molen machine, centrifugale verticale ring sterven houtpellets making machine, Rind Die

grondstof:

Zaagsel, rijstschil, stro enz., houtafval etc., Hout

Sollicitatie:

Maak Biomassakorrels, houten korrel/dierenvoer, biomassakorrel die, de molen van de biomassakorrel,

Stroom:

90 kW, 55 kW

Gebruik:

Biomassa-industrie, het maken van pellets voor huisdiervoer

Productnaam:

Biomassa houtpellets die machine maken, 5-6 t / uur Pelletmachine houten pelletmolen / houtpelletmac

Motor:

Siemens, Chinees merk

Betaling & het Verschepen Termijnen

Min. bestelaantal

Prijs

Bespreekbaar

Verpakking Details

Houten

Levertijd

10 dagen

Betalingscondities

L/C, D/A, D/P, T/T, Western Union

Levering vermogen

100set

VERWANTE PRODUCTEN

Video

High-Quality Ring Die Wood Pellet Machine with Vertical Feeding Design and Automatic Lubrication System for Biomass Pelletizing

Krijg Beste Prijs

Video

- High Efficiency Ring Die Wood Pellet Machine, 1-5 TPH Industrial Biomass Pellet Mill for Sawdust/Agro Waste

Krijg Beste Prijs

Video

Automatic Ring Die Wood Pellet Machine, Quick Die Change & Low Energy Consumption for Biomass pellet Plants

Krijg Beste Prijs

Video

Verticale structuur hogedruk pelletiseren energiebesparende ringvormige matrijs houtpelletmolen voor biomassa brandstof

Krijg Beste Prijs

Contacteer ons

Contact nu

Productomschrijving

Industrial Ring Die Pellet Machine for Wood Chips, Sawdust & Straw Pelletizing

Professional Biomass Pelletizing Equipment

Our ring die wood pellet machine is a high-efficiency, stable and energy-saving pelletizing equipment designed for biomass raw materials. It realizes the recycling of agricultural and forestry wastes by compressing various woody and straw materials into high-density pellets, which are widely used as clean energy and feed. With advanced ring die technology and precise transmission system, the machine ensures high pellet forming rate and long service life, making it an ideal choice for your production line.

Core Features

Vertical Feeding & Uniform Distribution: Adopts vertical feeding design, materials directly enter the pelleting chamber, avoiding jamming. The rotating frame plate realizes centrifugal material distribution, ensuring even contact between materials and the die.
High-Quality Ring Die & Pressure Roller: The ring die is made of high-grade alloy steel with carburizing and quenching treatment, featuring high hardness and wear resistance. The pressure roller is optimized in structure, which can be repaired 2-3 times, reducing production costs.
Efficient Transmission System: Equipped with high-precision helical gear direct transmission, the transmission efficiency is over 98%. The main shaft is made of imported alloy steel, ensuring stable operation under high load.
Automatic Lubrication System: Independent automatic oil supply system regularly lubricates bearings and gearboxes, ensuring sufficient lubrication and extending the service life of key components.
Good Heat Dissipation: Vertical structure design is conducive to heat dissipation in the pelleting chamber. Equipped with dust removal fan to promote air circulation and prevent particle deformation caused by high temperature.

Application Scope

Suitable for various biomass raw materials with moisture content of 10-30%:

Woody materials: Sawdust, wood chips, bamboo chips, branches, bark, furniture factory scraps, construction waste wood, etc.
Straw materials: Rice husk, peanut shell, sunflower seed shell, corn stover, wheat straw, sugarcane bagasse, etc.
Other materials: Traditional Chinese medicine residue, coffee residue, palm shell, etc.

Widely used in: Biomass power plants, wood processing factories, feed factories, fertilizer factories, chemical plants, and rural straw energy recycling projects.

Technical Parameters

Model	Pellet Size (mm)	Production Capacity (t/h)	Overall Dimension (LWH, m)	Weight (T)
EWVR450	2-14	0.8-1	1.81.11.5	2.2
EWVR560	2-14	1.5-2	2.11.31.6	4.6
EWVR600	2-14	2-2.5	2.31.41.7	5.8
EWVR700	2-14	2.5-3	2.51.51.8	7.2

Working Principle

The material enters the pelleting chamber vertically and is evenly distributed on the inner surface of the static ring die by the rotating frame plate. Under the rolling of the rotating pressure roller, the material is extruded through the die holes. During this process, the material undergoes physical changes under high pressure and high temperature, and the fibers are rearranged and bonded to form continuous cylindrical solids. The solids are cut into pellets of specified length by the cutter around the die, and then collected to the discharge port by the material shifting teeth.

Application Cases

European Home Heating & Small-Scale Agriculture Project: In Germany's biomass towns and rural areas of Spain, our ring die wood pellet machines are widely used by local households and small farms. Farmers process garden weeds, fallen leaves, and crop straw into pellets through the machines, which are used as clean fuel for home fireplaces and small heating systems.
Japanese Biomass Power Plant Cooperation: With the gradual phase-out of old coal-fired power plants in Japan, we have provided multiple sets of large-scale ring die wood pellet machines for local emerging biomass power plants. The machines process sawdust and palm kernel shells into high-calorific-value pellets, which are used as the main fuel for 100% biomass-fired power generation.
Russian Forestry Waste Recycling Project: In Siberian forestry regions of Russia, our equipment processes wood processing residues (such as wood chips, bark) into biomass pellets. These pellets are not only used for heating in local forestry stations and nearby communities but also sold to European markets.
Southeast Asian Agricultural Waste Utilization Project: In Vietnam and other Southeast Asian countries, our ring die wood pellet machines are applied to process rice husks, peanut shells, and sugarcane bagasse into pellets. The pellets are mainly used as fuel for local small and medium-sized feed factories and food processing plants, replacing traditional coal fuel.

Why Choose Us?

Professional R&D Team: Customize pelleting solutions according to your raw material characteristics and output requirements.
Strict Quality Control: Each machine undergoes rigorous testing before leaving the factory to ensure stable performance.
Perfect After-Sales Service: Provide installation guidance, operation training and lifelong technical support.
Energy-Saving & Environmental Protection: Help you realize resource recycling and meet environmental protection requirements.

For questions about the machine, customization needs, or detailed quotation and technical parameters:

Email: sales009@eternalwin.cn

WhatsApp: +86 17320176500

We reply within 24 hours and provide professional solutions tailored to your needs!
